Eclat H3K H5KB

Èclat Hybrid Inverter
H3K/H5KB

Put Your Site on Next Level with Greenshift
05 / 05
Key Features
Fully power your home or business with our new range of hybrid inverters.
Available in 3KW and 5KW output capacity.
Pure Sinewave

208-240v Adjustable Output.

6000W Peak Power.

10ms Transfer Time.

Soft Start.

Parallel Connectivity

Parallel up to 9 units together to achieve a total power output of 45KW from our H5KB model.

3 Phase Output can be achieved by connecting 3 H5KB units paralleled together.

PV Connectivity

Connect a solar array direct for a total of 1.5KW (H3K) or 5KW (H5KB).

Built in MPPT controller with a tracking range of 120-115v (H3K) & 120-430 (H5KB).

Compatible with multiple battery technologies.
Li-ion, LiFePO4, AGM, OPzS
+ More.
Adjustable Battery Charger
Up to 60A (H3K) or 80A (H5KB).
Battery Charging
Batteries can be fully recharged within 1 hour or less @ 20% DoD.

Charging via Grid Power & Solar Power.

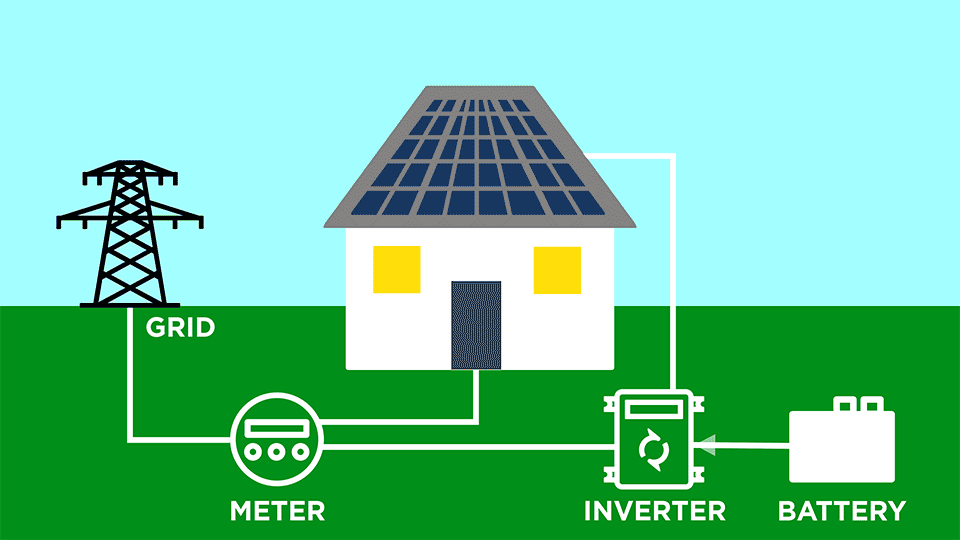

Power your home or business via the grid or solar panels. Although solar panels are not a requirement, they can assist in. reducing your electricity bill and charging your batteries during a long-term power outage.

Built in Protection
Surge Protection.

Overload.

Short Circuit.

Over Temperature.
Communication
Optional WiFi/GPRS Connectivity for data logging.
dB
Low Noise
≤50db.
High Yields
94% Efficient.

Wide MPPT Voltage Range.
Put Your Site on Next Level with Greenshift

Get a closer look

Put Your Site on Next Level with Greenshift

LCD Display

SetupAll settings configurable via the LCD display.
Loads Monitor inputs and output loads via the LCD Display.
Battery Status Monitor battery charging and states.

Choose Your Output

H3k
Suitable for most apartments or small homes.

24v Battery System.
Not Parallel Capable.
1.5KW PV Input.
3000w
H5KB
Suitable for most small to medium sized homes.

48v Battery System.
Parallel Capable up to 9 units.
5KW PV Input.
5000w
